Colour Clash

The prettiest problem in the port

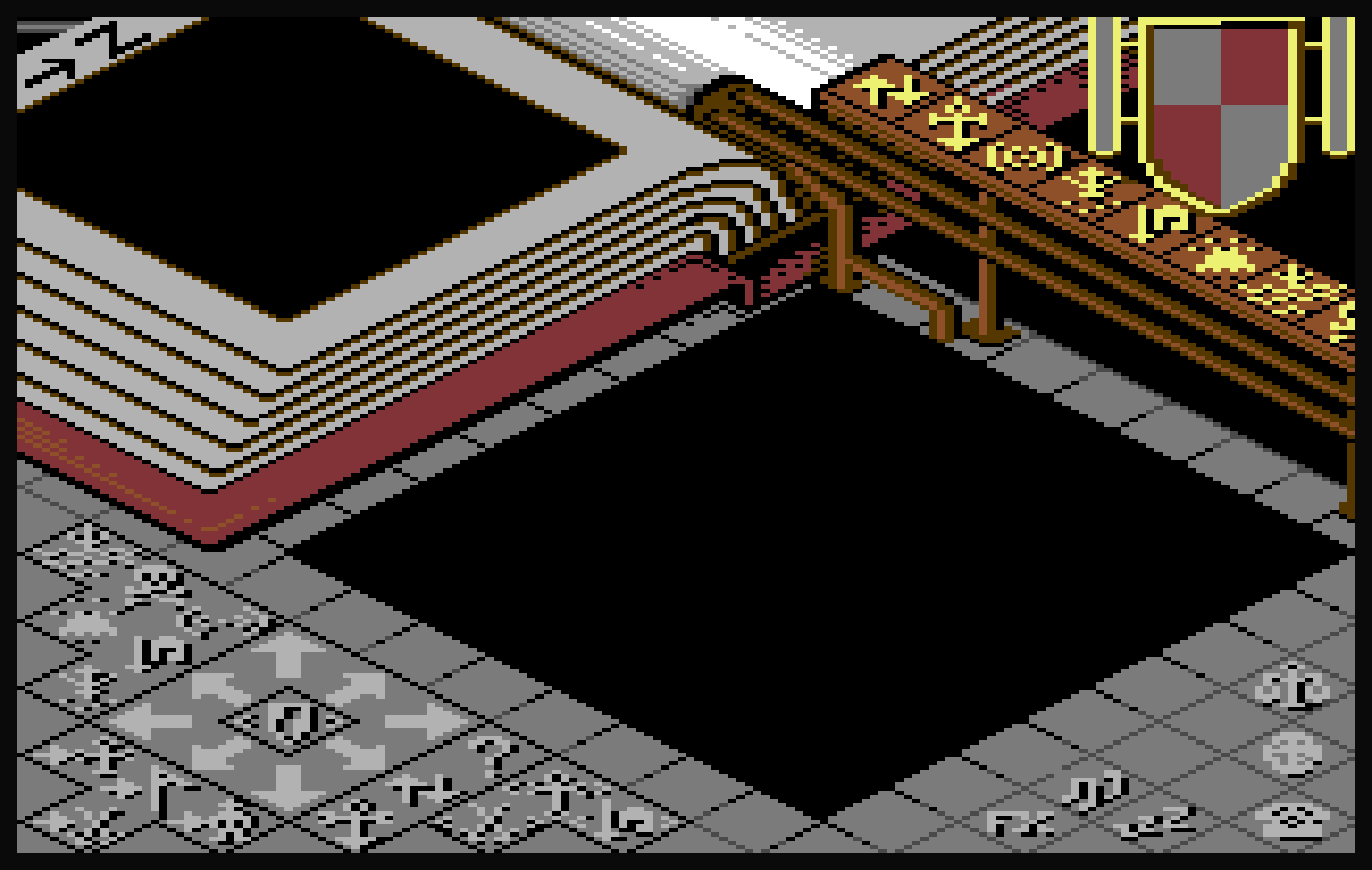

In Populous the world sits in a pit in the middle of the screen, framed by a book on the left, a rail of icons on the right and a grey stone rim all round. Raise a hill high enough and it climbs over the book and up under the rail. On the Amiga that is no problem at all. Every pixel can have any colour, so land in front of the frame is just land in front of the frame.

On the C64 it was the hardest graphics problem in the whole port. Harder than the scrolling, the walkers or the cartridge banking. This is how I solved it, with real pictures from the game.

It starts with the frame

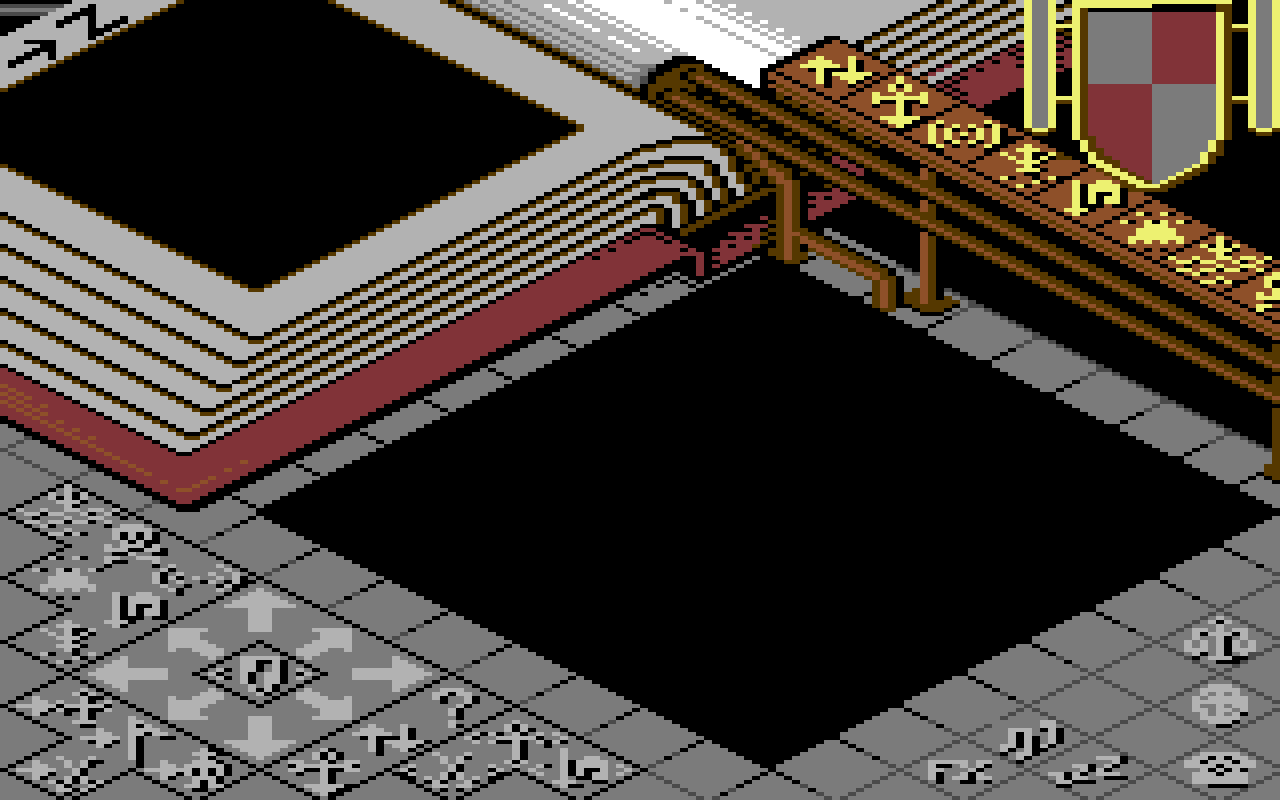

I drew the game screen myself as a Koala picture, knowing that land would grow into it. That changes how you paint. Every block the land can reach had to be planned: how many colours it uses, which of them can give way without the picture falling apart, and where the lines run so a hill across them still reads as a hill in front of a book.

So the frame is simpler and cleaner than the Amiga original, on purpose. Flat areas, clear shapes, few colours per block along the edge, no dithering where the land meets it. As a pure multicolour picture I would have drawn it differently: more shading in the book, softer stone, more colour in the rail. A picture that only has to look good on its own is easy. One that has to survive any landscape the player throws at it is a different job, and it took many rounds, sometimes one pixel at a time.

The game uses the picture exactly as drawn: the C64 reads the frame's colours straight from the Koala in cartridge ROM.

Black and three colours

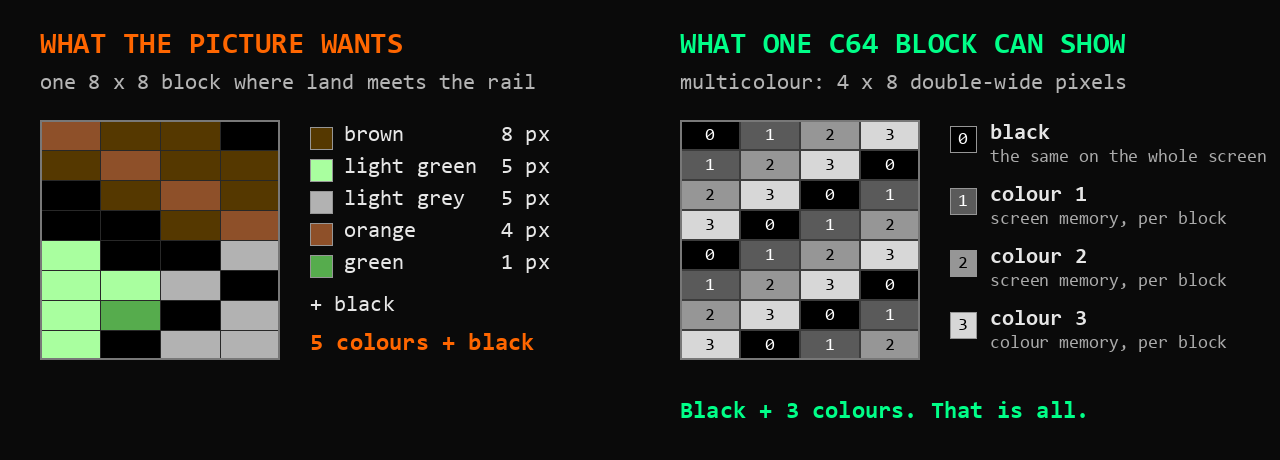

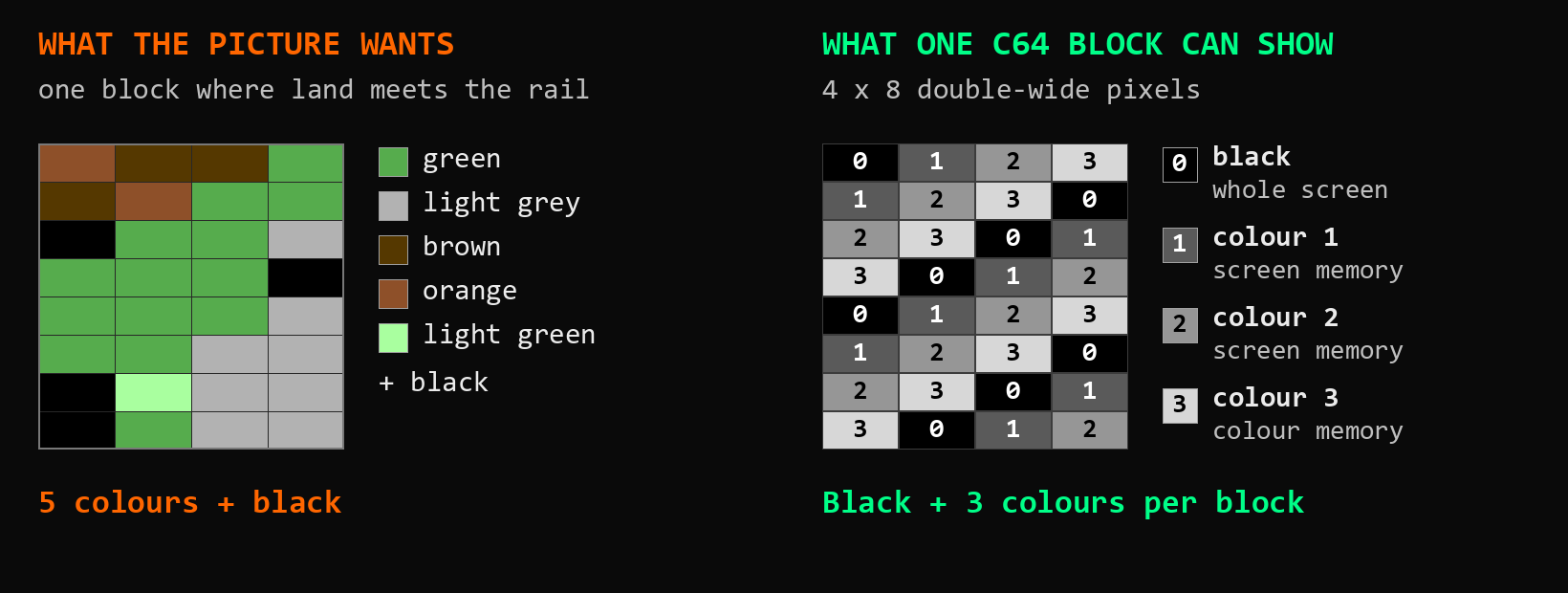

The limit, in plain terms. The screen is 40 x 25 chars, 1000 blocks of 8 x 8 pixels. In multicolour mode each block is 4 x 8 double-wide pixels and shows black plus three colours. Black is shared by the whole screen. Two colours come from screen memory and one from colour memory, all three free per block. Three. Not one more.

The landscape tiles already use all three: two ground colours plus one for detail, water or a team flag. So the moment land rises into the frame, land and frame want the same three slots. Somebody has to lose.

1000 chars, each with a job

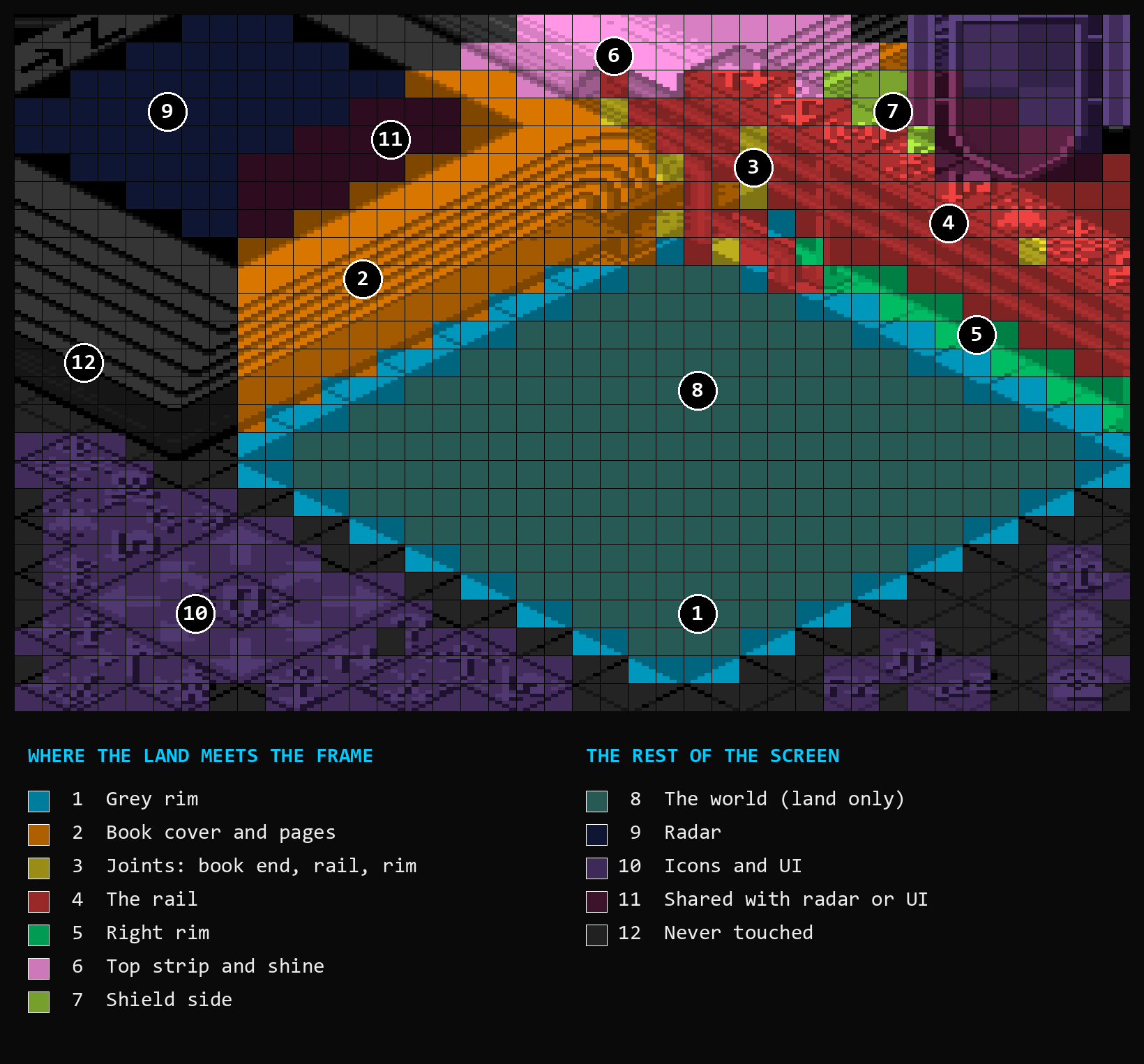

The first step was not code, it was a map. I went through all 1000 chars of the screen and gave each one a job: who draws it, and what happens when two things want it at once.

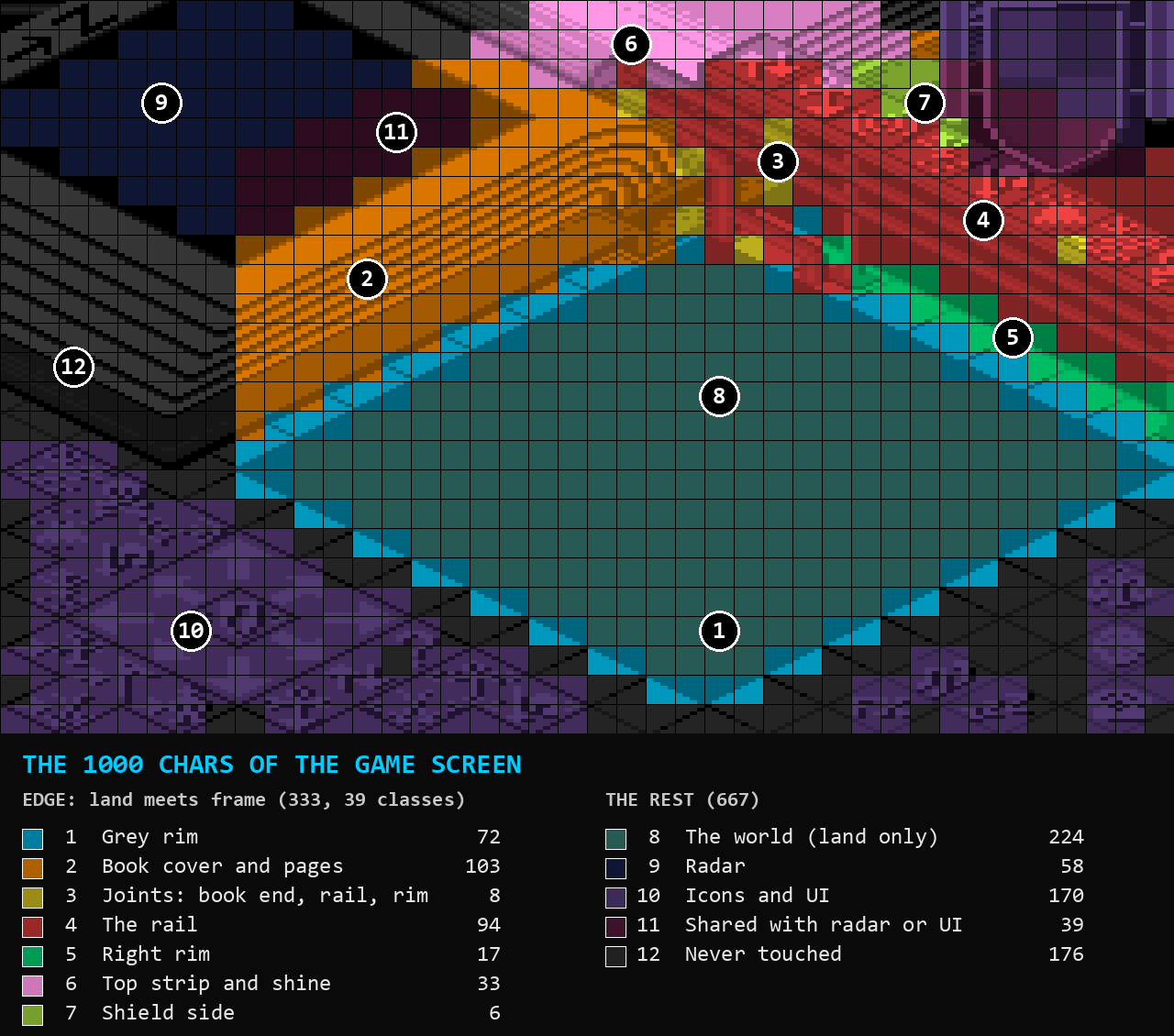

Most of the screen is easy. 224 chars are the world itself, where the land owns every pixel. 176 chars of frame are never touched once the world is drawn. The radar has 58, and the icons, the shield and its bars have 170. 39 chars are shared between the land and the radar or the shield, with a simpler rule of their own.

That leaves the interesting part: 333 edge chars, the frame art the land can rise into, in 39 classes. A class is an exact set of frame colours in an exact kind of place: the grey rim, the red book cover, the pages with their brown lines, the orange and brown rail, the dark grey edge of the right rim, the white shine along the top, the small joints where book, rail and rim meet, and the chars by the shield. Some classes have 66 members. Some have one, because that char is unlike anything else on the screen.

Every edge char is in one of three states, worked out on every redraw. Untouched: no land, so it shows my frame as drawn. Completely hidden: all land. Both visible: part land, part frame. Only that last one is a fight, and only that one needs a rule.

What happens if you do nothing clever

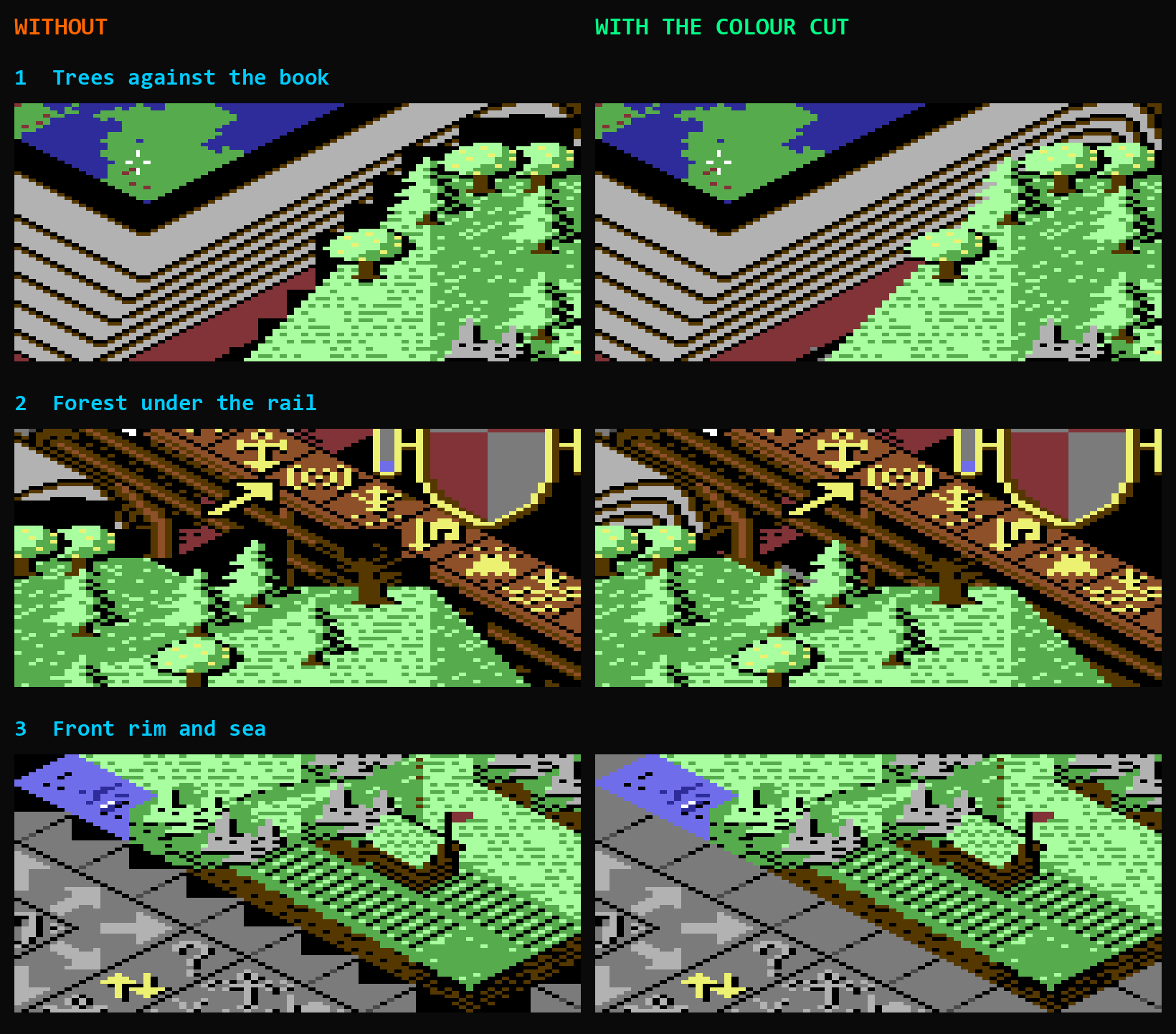

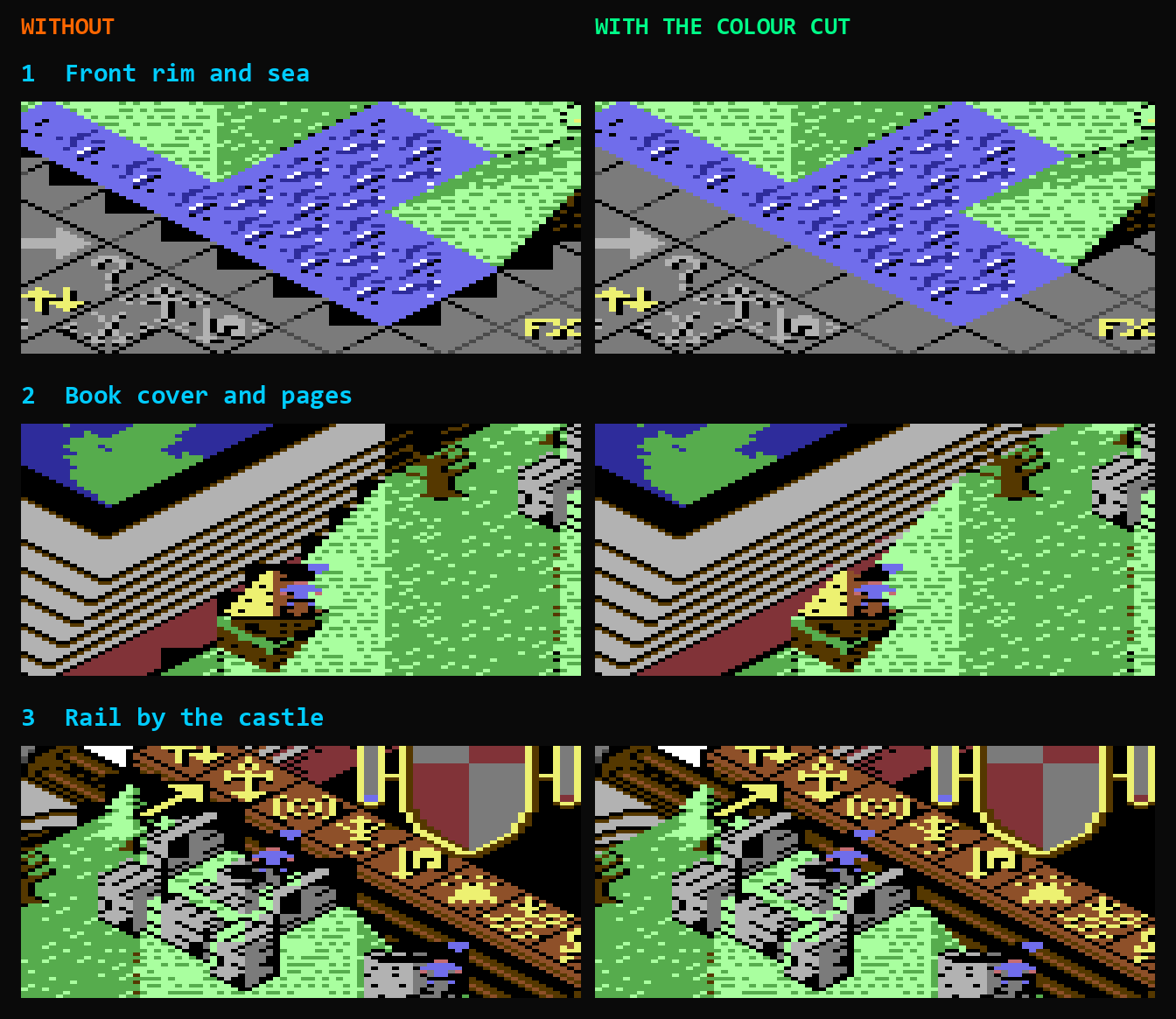

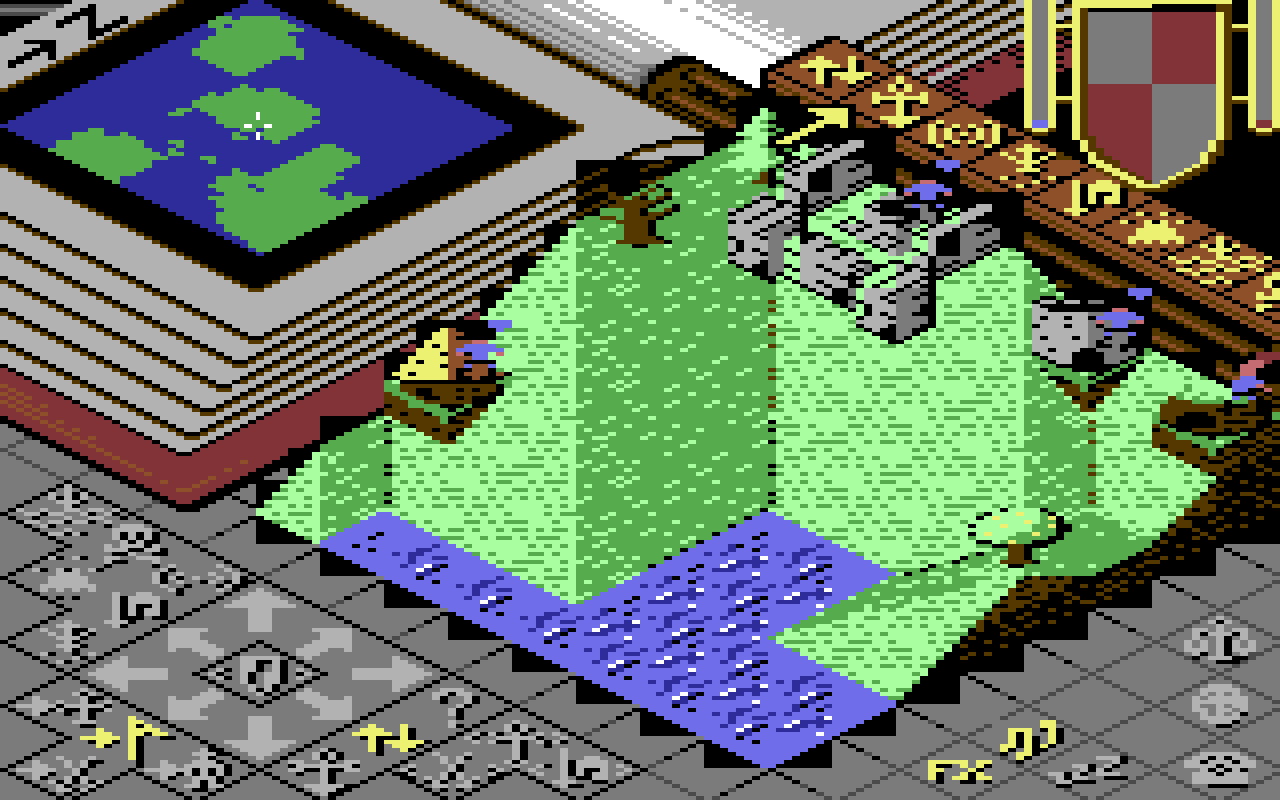

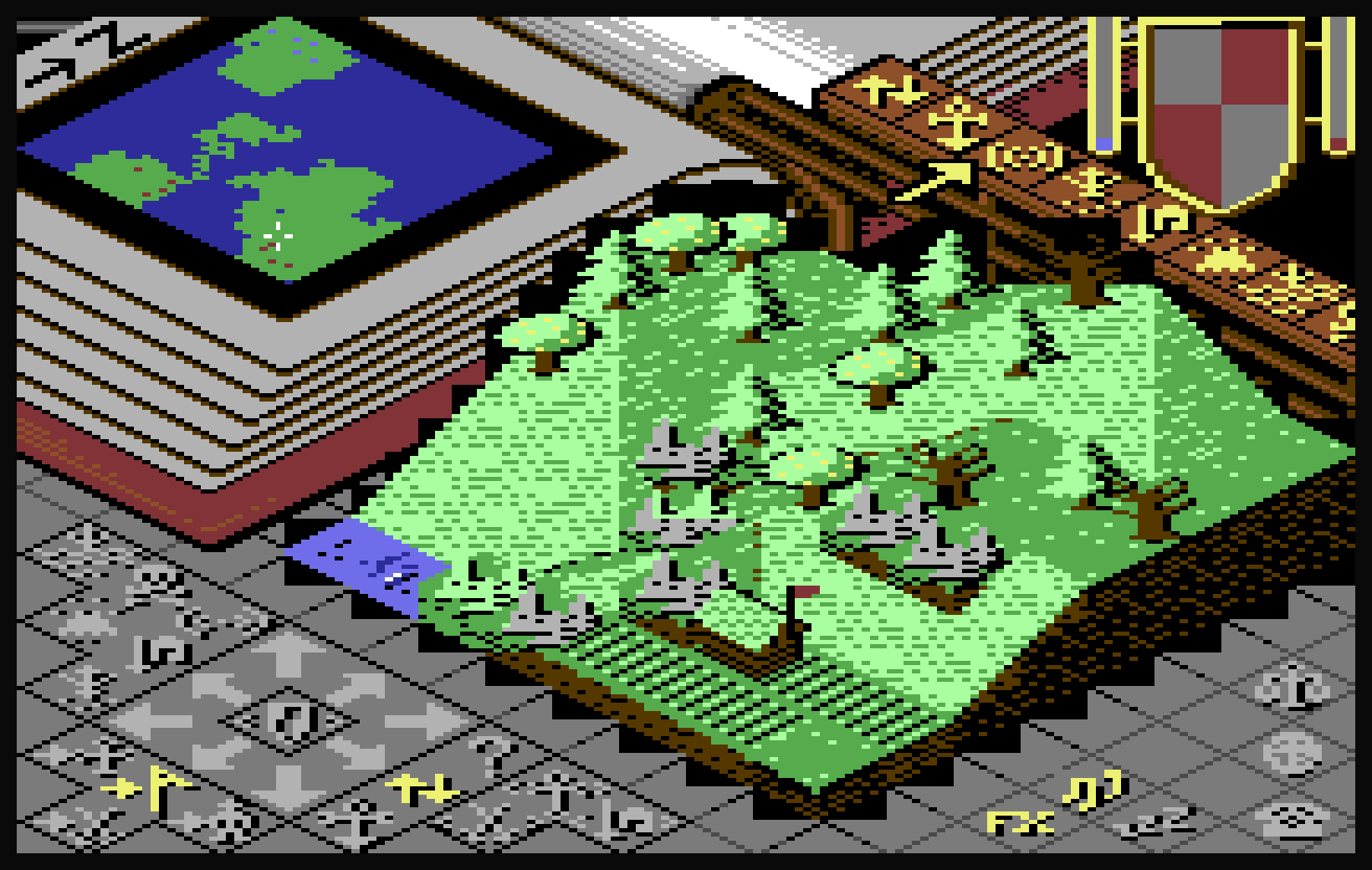

Here is why the rules matter. Grassland, world 0: a castle and towns against the rail, a hill rising into the book, and the sea against the front rim. First the obvious way: where land and frame meet, the land gets the block's colours, and a frame pixel keeps its colour only if the land happens to use it too. Every other frame pixel goes black.

In this one view that is 70 chars and 1,552 black pixels that do not belong there. Look at the front rim: a black staircase all along the sea. And the sea is the silly case. Grey rim plus blue sea fits easily in three colours, nothing has to give. The colours just have to go back in the right place, and the simple version never does that.

The idea: decide once, on the finished picture

My first attempts decided item by item while the land was being drawn: a tile here, a tree there, each one fighting the frame for its block. That is where most of the ugliness came from. An early item could steal a colour that a later one would cover anyway.

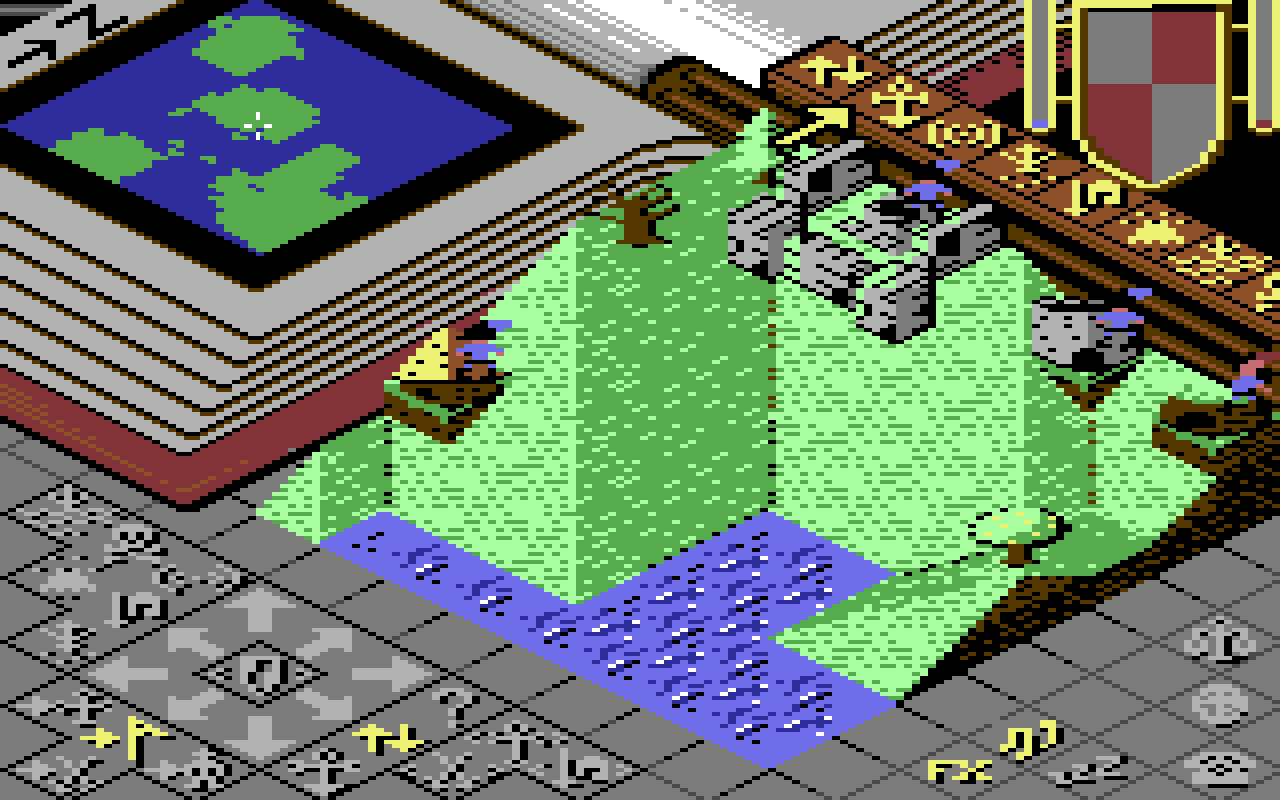

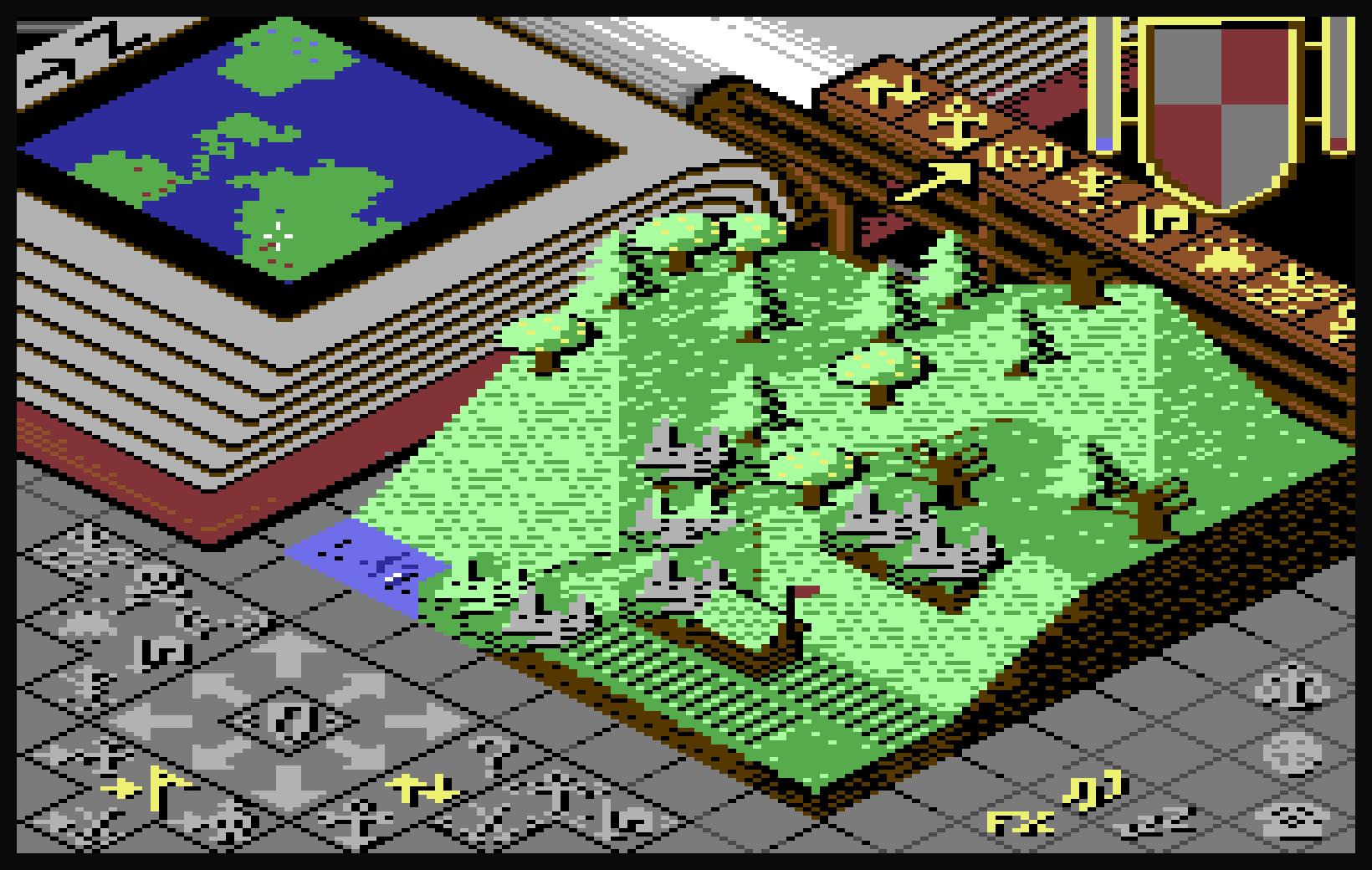

The colour cut turns that around. All the land is drawn first, while a mask records which pixels it covered. Then each conflict char is decided once, on the finished picture, using only the pixels you can actually see: land where the land is, my Koala art everywhere else. If the colours fit in black plus three, they all stay and only need the right slot. If not, colours give way one at a time, in an order set by the char's class, until they fit.

Three rules hold everywhere. Tiny colours go first: one or two visible pixels go before anything else, a tiny land colour back into the land, a tiny frame colour into the frame. A dropped colour lands on a colour that survives, never on one that drops later, so no pixel moves twice. A land colour merges within the land: light green into green, never the desert's orange sand into a brown page line just because both are browns. Black is only a target for brown and dark grey, and only as a last resort.

Then each class adds its own rule, 26 in all. The grey rim never gives while it shows. On the rail, orange goes first and becomes brown, and brown never gives. On the book, the light grey page never gives, and a brown page line fades into the page instead of ending in a black stub. Team flags only change into colours that still read as their team: light blue into blue or cyan, red into light red, orange or purple.

One char, step by step

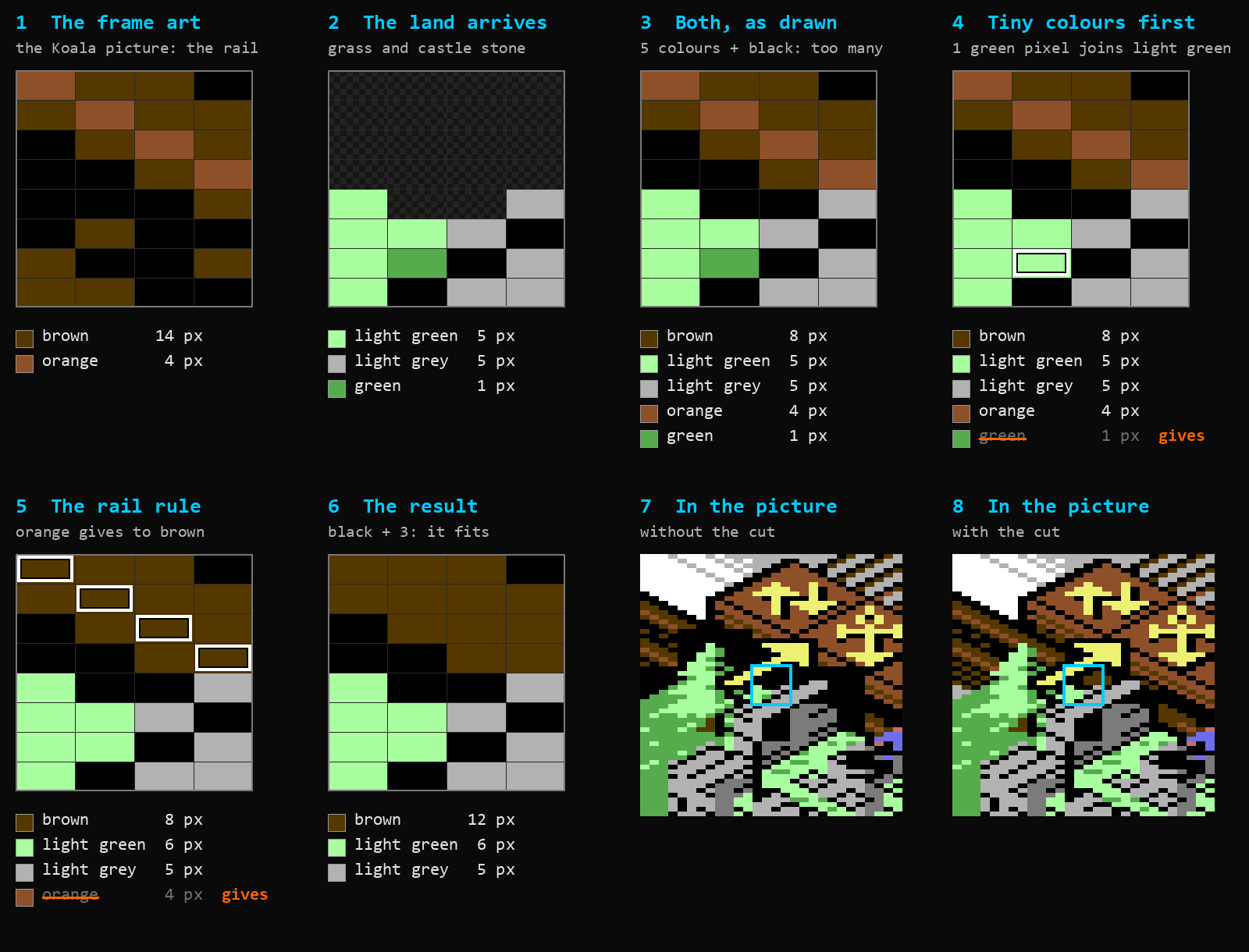

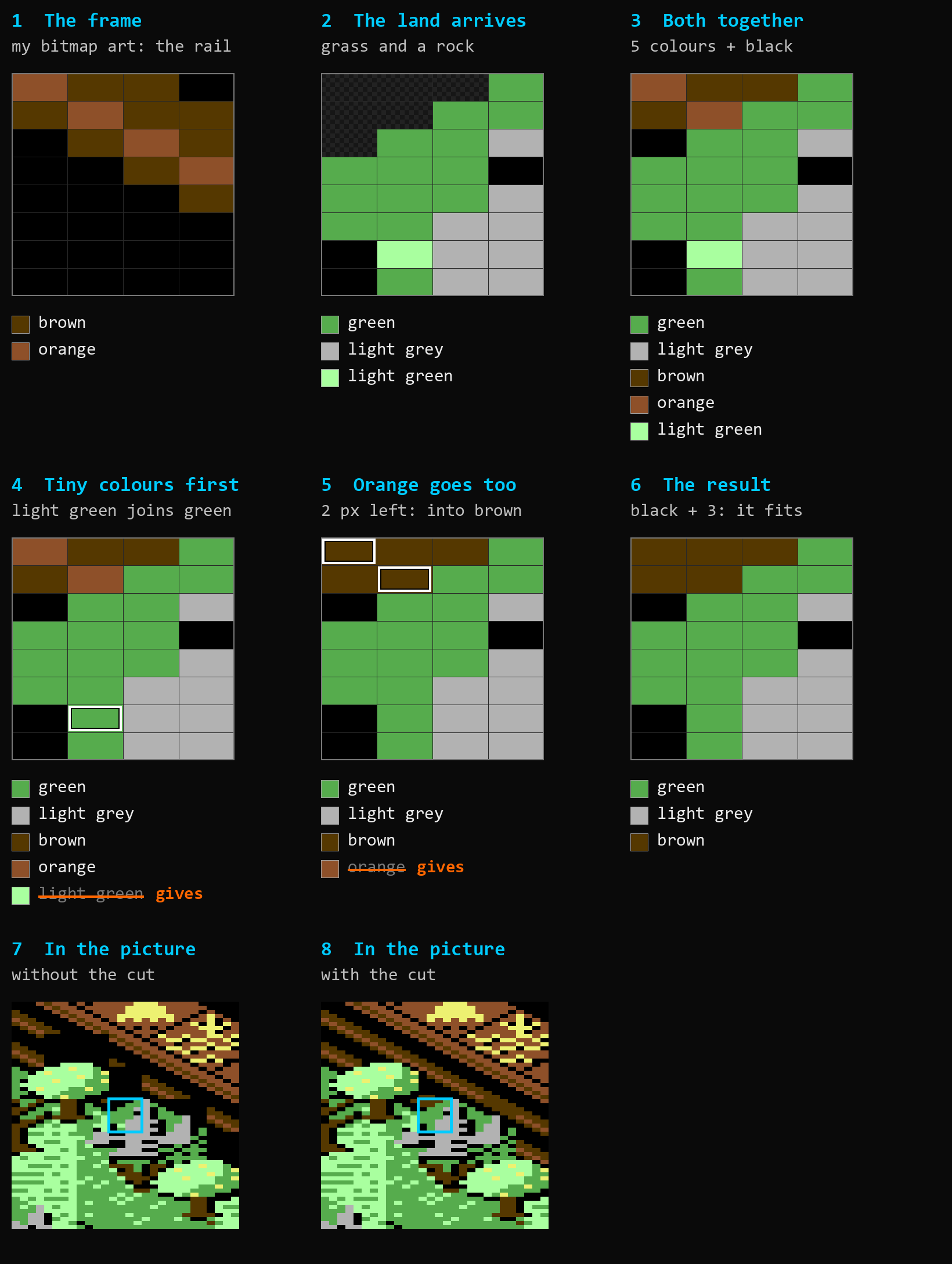

Here it is on one char from the view above: column 25, row 4, where castle stone and grass meet the rail. Five colours plus black want into a block that can show three.

1. The frame: my rail, brown with an orange stripe. 2. The land arrives in the bottom half: light green grass, light grey castle stone, and a single pixel of darker green. 3. Together that is brown, light green, light grey, orange and green. Two too many.

4. Tiny colours go first. The lone green pixel is land, so it goes to the closest land colour, light green. 5. Still one too many, so the rail's own rule kicks in: orange goes first, and its four pixels become brown, the colour the rail is built on. 6. Brown, light green, light grey, plus black. It fits. The land keeps its colours, the castle keeps its stone, the rail is still a rail. 7 and 8 show the char in the picture: without the cut a black hole in the rail, with the cut you would never know there was a fight.

The order is the whole point. On the rail, brown is what makes it a rail, so brown never gives, and the orange stripe is the highlight it can afford to lose. On the rim it is the grey, on the book the light grey page. That is what the 26 rules are: one decision per part of the frame about what matters most, applied to every char of that class on every landscape.

Edge cases, or where my first rules were wrong

The first full set of rules ran. Then came the looking: many, many screenshots across all four landscapes, every edge class with every kind of land, town, tree, rock, flag and sea against it. That found the places where a rule did exactly what it said and still looked wrong. Three of them, each shown three ways: without edge handling, with my first rules, and with the final ones.

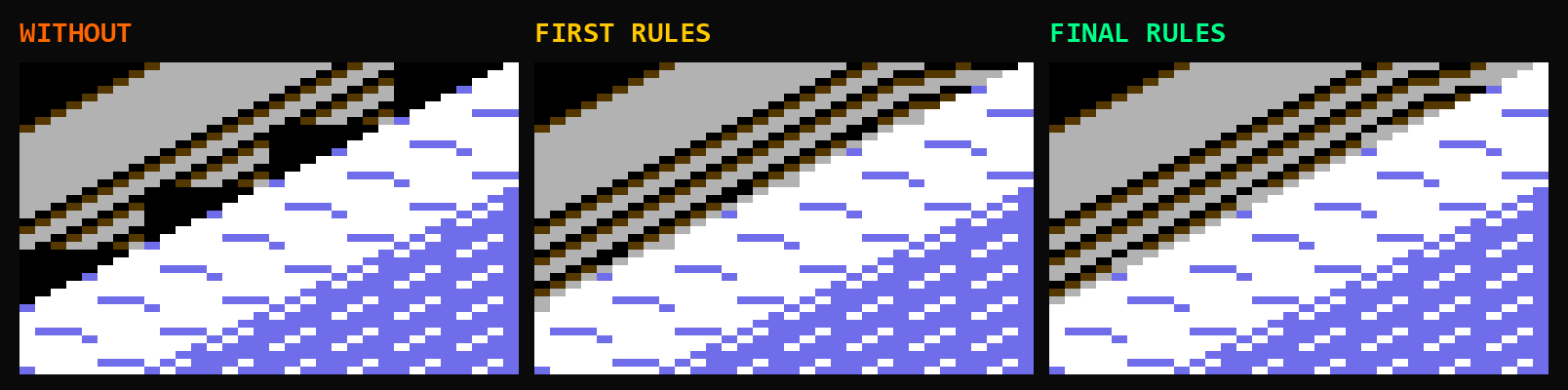

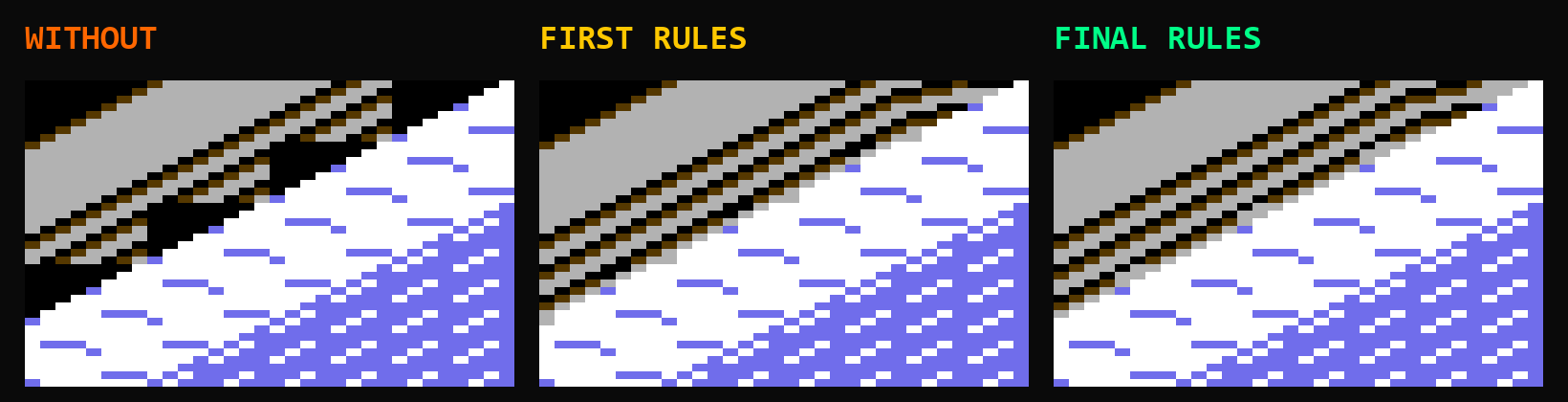

The page lines. When the pages have to give a colour, the brown line goes. My first rule sent it to black, the only safe colour I had allowed brown. The pages stayed whole, but every line ended in a black stub where it met the land. Now the line fades into the page: brown goes to orange if the land has orange, otherwise into the page's light grey, and only to black if neither is left. The book just runs behind the hill.

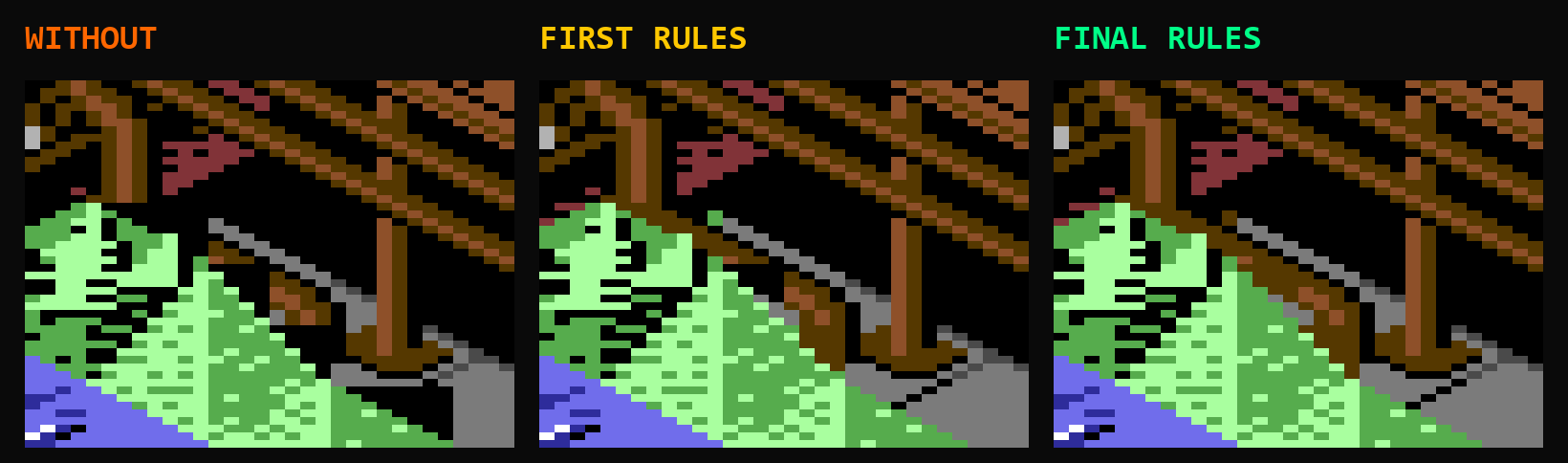

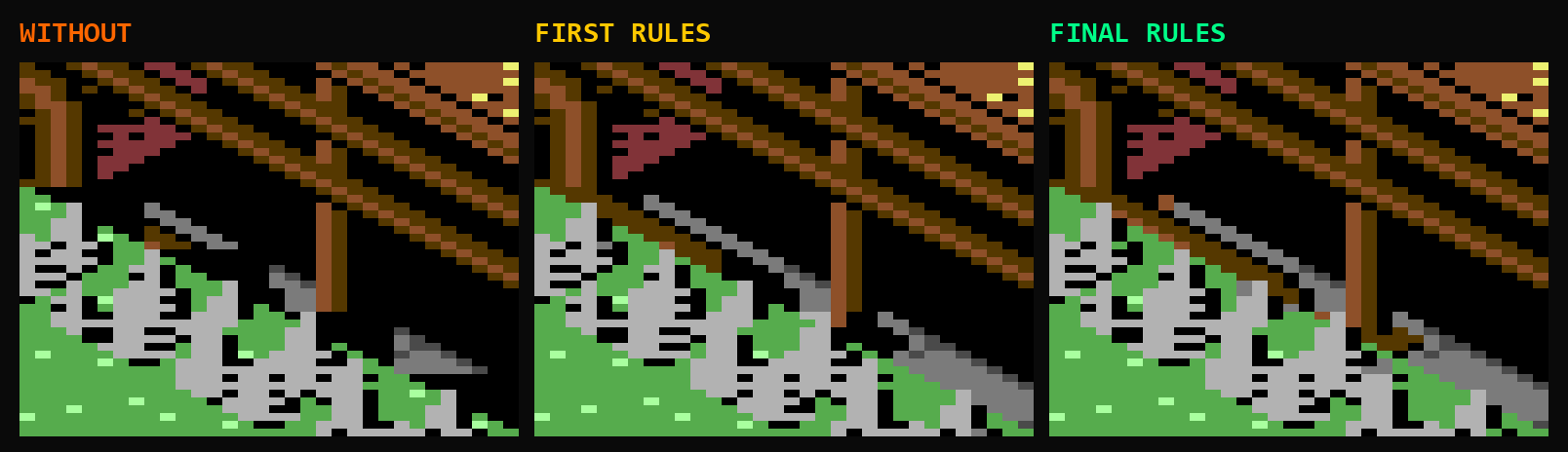

The rail meets the rim. Where the rail runs into the stone rim there are three frame colours: orange, brown and grey. My first rule made brown give second, straight to black, so the foot of the rail post went black and the rail looked cut short. Now the land gives before brown does, and if brown ever has to go, it goes to dark grey or grey, never black. The post stands on the rim again.

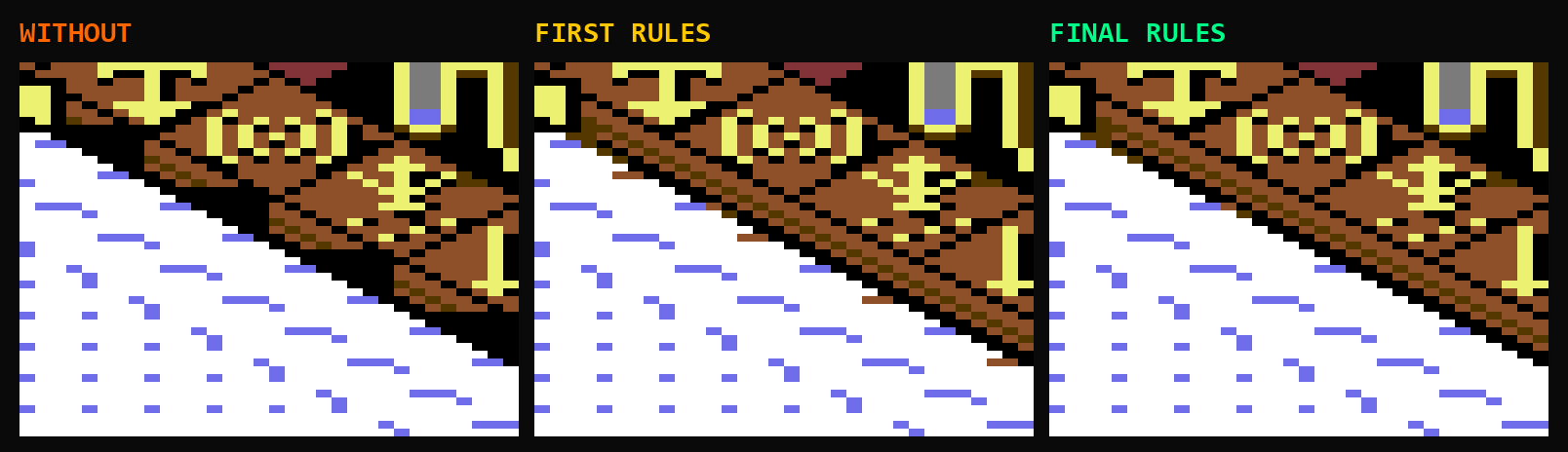

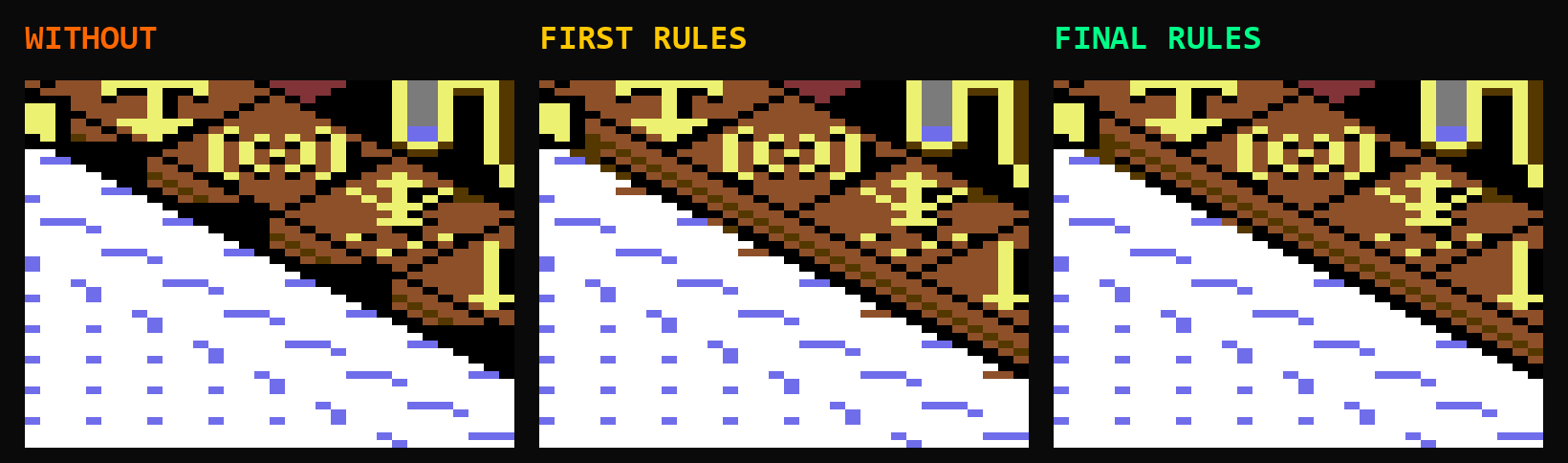

The snow saw-tooth. A sneaky one. On the snow world the land under the rail had small specks of light blue, one or two pixels each. Tiny colours go first, which is right, but my first rule merged them into the closest colour in the char, and that was the rail's orange. Result: an orange saw-tooth along the whole rail. Now a tiny land colour goes back into the land first. Snow specks become snow.

None of these were bugs in the code. The code did exactly what the rules said. They were judgement calls I got wrong on paper, and the only way to find them was to look. A lot.

The cost, and getting it back

None of this is free. Every conflict char now gets counted, ranked and repainted after the land is drawn, on a 1 MHz machine. The first working version made a full redraw of the close-up 59% slower than the old rules, and a partial redraw, the kind you get when you sculpt, 31% slower.

Then came the speed work. Most conflict chars do not actually need a cut: their colours already fit, like the grey rim against the sea. In the measured scenes that was 93% of them, and they take a fast path that only counts, places and writes. Everything that can be worked out in advance is: the tables and the frame's pixel planes for every edge char sit precalculated in cartridge ROM, in banks of their own, and the cut needs no RAM the game did not already have. Every step had to give exactly the same bytes on screen as before, checked byte for byte, or it did not go in.

Where it stands now: a full redraw costs 38% more than with the old rules, and a partial redraw 23% more. The close-up is built on a hidden screen and swapped in when it is done, so you never see a half-made picture, and the music keeps playing.

The proof: byte for byte

A rule set like this is easy to get almost right, and almost right shows up as one wrong pixel, in one char, on one world, an hour into a game. So the rules live in one place: a reference in Python, the same code the web app runs in your browser, and the 6502 code is checked against it. Hundreds of thousands of test cases through the cut routine: 0 mismatches. Real game scenes on five worlds, all 39 classes compared between the C64 and the reference: 0 differences.

On top of that, every cut char in all those screenshots was checked by program. With my earlier rules each landscape had around 1,600 rim chars that lost their grey and around 40,000 black notch pixels in those scenes. With the colour cut: 0 and 0.

Why bother

Because this is the bit people look at. The edge of the pit is where a C64 Populous looks like a C64 version, or like the game. It is a thousand small decisions about colour, and you are not supposed to see any of them. If you play and never notice that land and frame fight over every block they share, it worked ;)
